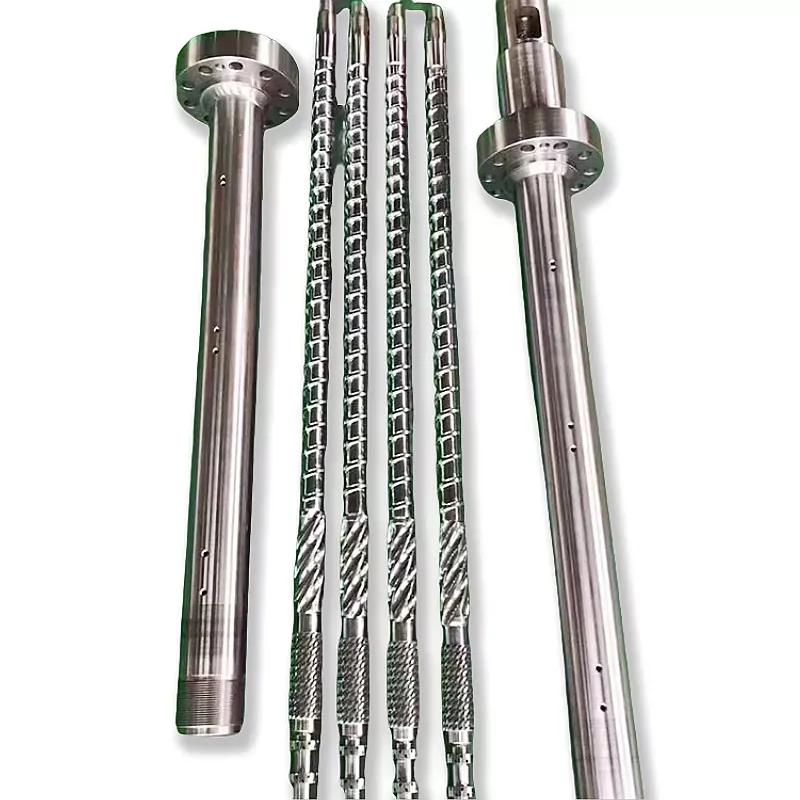

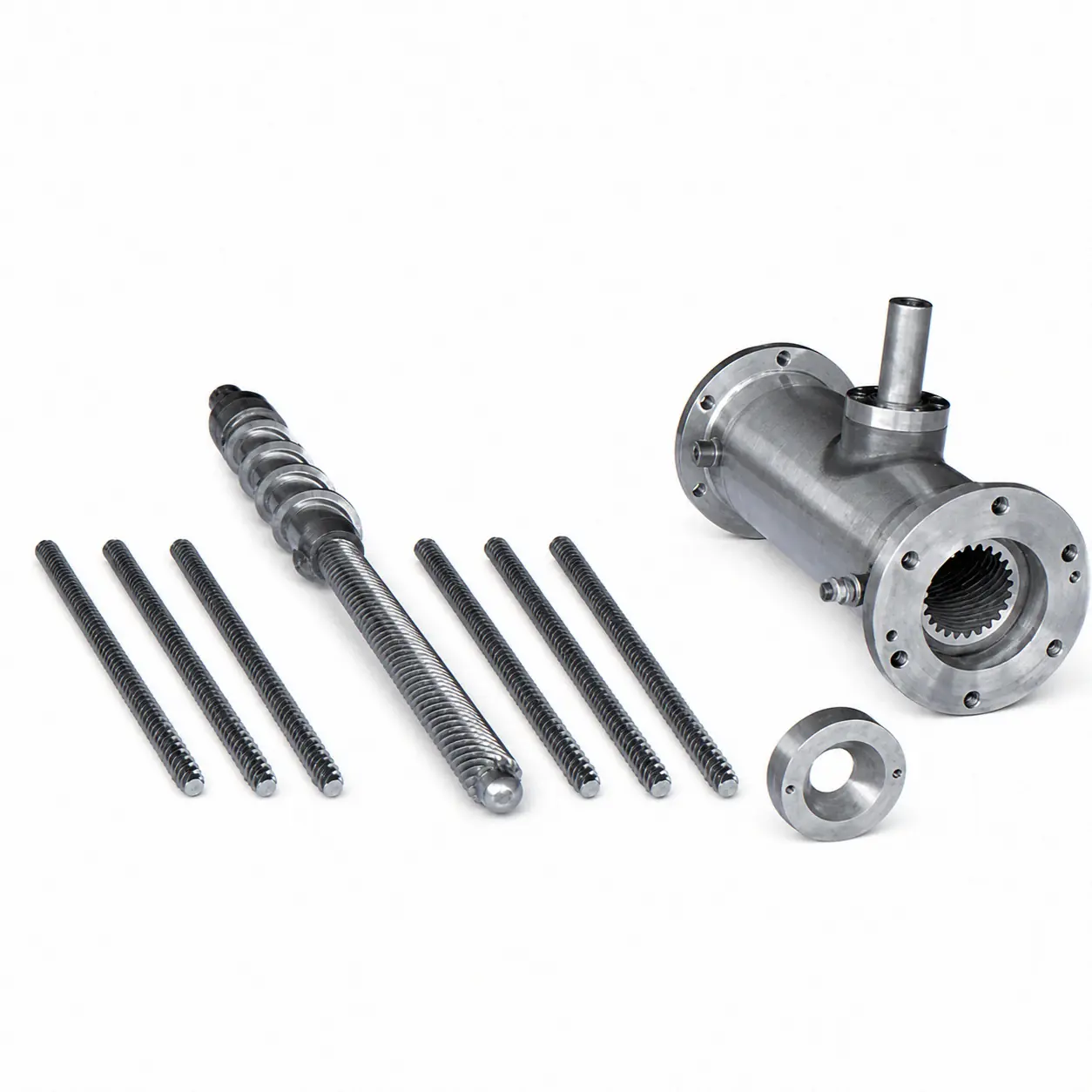

Planetary screw system with central spindle and planetary spindles manufactured by Nanhaiya View full size

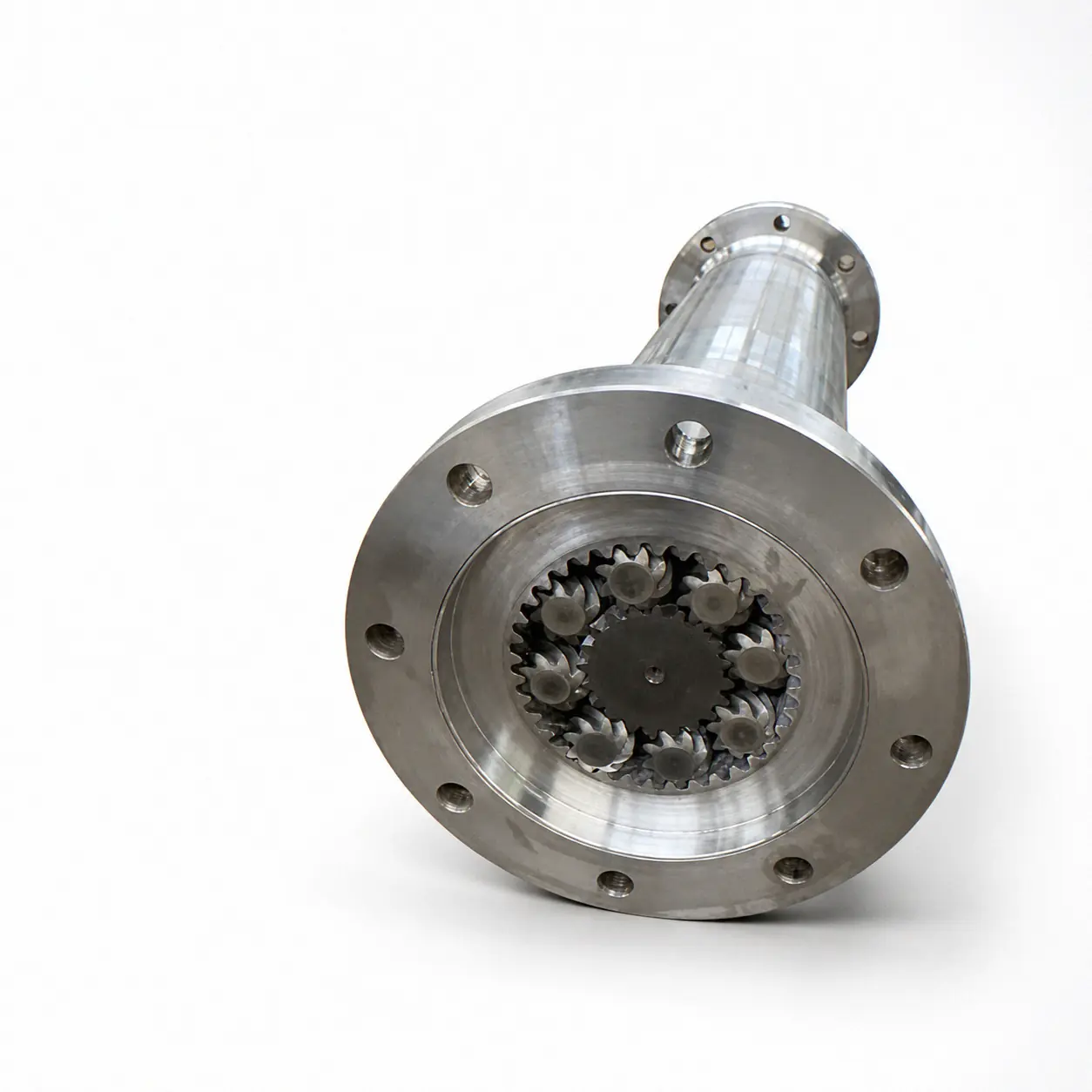

Planetary screw assembly — central spindle with surrounding planetary spindles

Planetary Screw Barrel

Custom planetary screw barrels and planetary roller screw barrel components for plasticizing, mixing and dispersion applications, reviewed according to machine model, processed material, application, drawings, samples or measured dimensions.

Quality

Quality Checked

Response

Technical Support

Pricing

Factory Direct

Warranty

Warranty by Order

Inquire on WhatsApp Request a Quote

Product Overview

Planetary screw barrels, also known as planetary roller screw barrel systems, are used in plasticizing and mixing applications where material homogenization, dispersion and temperature control are important. The planetary structure can support material shearing, mixing and plasticizing through multiple rolling elements working around the central screw system.

Nanhaiya can review custom planetary screw barrels and planetary roller screw barrel components according to machine model, processed material, application, drawings, samples or measured dimensions. The final design should be matched to the processed material, equipment structure, wear condition and working requirements.

For replacement projects, our team can review existing planetary screw barrel components, worn samples, photos, drawings or measured dimensions to support quotation and technical review. This page is intended for planetary screw barrel replacement and custom manufacturing requirements, not for complete extrusion line quotation.

Technical Specifications

Parameter Value Unit
Product Type Planetary screw barrel and planetary roller screw barrel component
Applicable Equipment Planetary screw extruder, planetary plasticizing unit and related plastic processing equipment
Main Applications Plasticizing, mixing, dispersion, material homogenization, PVC processing, sheet extrusion, calendering and compounding applications
Processed Materials PVC, heat-sensitive plastics, filled materials and other plastic materials depending on formulation and working conditions
Machine Matching Based on machine model, drawings, samples, photos or measured dimensions
Design Review Reviewed according to processed material, plasticizing requirement, mixing requirement, equipment structure and wear condition
Material Selection Material and surface treatment should be reviewed according to material abrasiveness, corrosion tendency, working temperature and order requirements
Customization Custom manufacturing or replacement review according to drawings, samples, machine model or measured dimensions
Quotation Information Machine model, component type, processed material, application, drawings, photos, worn samples and measured dimensions are recommended for quotation review
Final Confirmation Final specifications should be confirmed according to technical review, order details and working conditions

Final specifications should be confirmed by Nanhaiya engineering before production.

Typical Applications

PVC processing

Planetary screw barrel review for PVC plasticizing and mixing applications where material stability and homogenization should be considered.

Heat-sensitive material processing

Planetary screw systems may be reviewed for heat-sensitive materials where plasticizing, mixing and temperature control are important.

Sheet extrusion and calendering

Planetary screw barrel components can be reviewed for sheet extrusion, calendering and related plasticizing applications.

Plasticizing and homogenization

Planetary screw barrel systems support material plasticizing, dispersion and homogenization depending on machine structure and screw configuration.

Filled material processing

Material and surface treatment options may be reviewed for filled materials according to abrasiveness, formulation and working conditions.

Replacement projects

Replacement planetary screw barrel components can be reviewed according to worn samples, drawings, photos or measured dimensions.

Common Processing Issues

1

Wear on planetary components

Solution: Long-term operation, abrasive fillers or unsuitable processing conditions may increase wear on planetary screw barrel components.

2

Poor plasticizing or mixing

Solution: Uneven plasticizing, poor dispersion or unstable material quality may require planetary screw barrel configuration review.

3

Temperature sensitivity

Solution: Heat-sensitive materials may require careful review of material flow, mixing condition and equipment matching.

4

Replacement uncertainty

Solution: When original drawings are unavailable, worn samples, photos and measured dimensions can help support replacement quotation.

5

Material compatibility issues

Solution: Different materials, fillers and additives may require material selection and surface treatment review according to working conditions.

Material Options

Material selection for planetary screw barrels should be reviewed according to processed material, wear condition, corrosion tendency, working temperature, equipment structure and order requirements. Final material and surface treatment should be confirmed after reviewing drawings, samples, photos or measured dimensions.

  • Base material selection reviewed according to part function and working condition
  • Surface treatment options reviewed according to material abrasion or corrosion tendency
  • Wear-related requirements reviewed according to processed material and application
  • Final specifications confirmed according to technical review and order details

Surface Treatment Options

Surface treatment for planetary screw barrel components should be reviewed according to processed material, wear condition, corrosion tendency, working environment and order requirements. Final treatment selection should be confirmed after reviewing drawings, samples, photos or measured dimensions.

What Can Be Reviewed

  • Wear-related surface treatment requirements based on processed material and working condition
  • Corrosion-related treatment requirements based on material formulation and production environment
  • Surface treatment feasibility according to drawings, samples or measured dimensions
  • Replacement component requirements according to existing part condition and application
  • Final treatment selection based on order details and technical review

Please do not treat any surface treatment option as standard before technical review. Material and treatment details should be confirmed according to part type, application and working conditions.

Customization Options

Nanhaiya can review planetary screw barrel customization requirements according to machine model, processed material, application, drawings, samples, photos or measured dimensions. Final specifications should be confirmed according to material characteristics, equipment structure, wear condition, plasticizing requirement and order details.

What Can Be Reviewed

  • Planetary screw barrel component type and replacement requirement
  • Machine model, equipment structure and working condition
  • Drawings, worn samples, clear photos or measured dimensions
  • Plasticizing, mixing and dispersion requirements
  • Material and surface treatment requirements according to processed material
  • Quotation feasibility based on order details and technical review

Replacement Planetary Screw Barrel Support

Replacement planetary screw barrel components can be reviewed according to existing parts, worn samples, photos, drawings or measured dimensions. If original drawings are not available, please provide clear photos, key dimensions, machine information and material/application details so the team can evaluate the replacement requirement.

What Information Do We Need for Quotation?

To support an accurate quotation and technical review for planetary screw barrels, please provide the following information when possible:

  • Machine model, equipment photos or planetary plasticizing unit information
  • Processed material and application, such as PVC processing, sheet extrusion, calendering or compounding
  • Component type, wear condition or replacement requirement
  • Drawings, samples, measured dimensions or worn part photos
  • Current production issue, such as poor plasticizing, unstable mixing or wear problem
  • Quantity, order details and any special working condition

Our team will review the information and follow up with pricing, manufacturing feasibility and technical support.

Frequently Asked Questions

What is a planetary screw barrel?
A planetary screw barrel is a plasticizing and mixing component used in planetary screw systems. It can support material plasticizing, mixing, dispersion and homogenization depending on machine structure and working conditions.
What applications are planetary screw barrels used for?
Planetary screw barrels may be used for PVC processing, heat-sensitive materials, sheet extrusion, calendering, compounding and other plasticizing or mixing applications.
Can you manufacture replacement planetary screw barrel components?
Yes. Replacement components can be reviewed according to drawings, worn samples, photos, measured dimensions, machine model and application information.
What information is needed for a planetary screw barrel quotation?
Please provide the machine model, processed material, application, component photos, drawings, samples, measured dimensions, wear condition and current production issue if available.
Can planetary screw barrels be customized?
Yes. Custom planetary screw barrel components can be reviewed according to machine structure, processed material, plasticizing requirement, drawings, samples and measured dimensions.
More technical FAQs (1)
Can you support projects without original drawings?
Yes. If original drawings are not available, worn samples, clear photos, key dimensions and machine information can help the team review the replacement requirement.
